How did engineers solve complex problems before modern digital computers existed? They used machines that worked with motion, pressure, voltage, and other physical signals to model changing conditions.
These analog computers helped researchers study aircraft movement, weather patterns, industrial systems, and scientific processes in real time.
Although digital technology later became more widespread, analog computing remains an important part of computer history and continues to influence modern sensors, control systems, and specialized research.
This blog explains how analog computers work, traces their development, examines their major types and uses, and compares them with digital computers.
What is an Analog Computer?
An analog computer is a machine that represents data through continuously changing physical quantities.
These quantities may include electrical voltage, mechanical rotation, distance, pressure, temperature or light intensity.
Each physical quantity represents a variable in a mathematical problem. For example, one voltage may represent speed while another represents time. The machine connects these values through components that perform mathematical operations.
Unlike an ordinary measuring instrument, an analog computer does more than display information. It models relationships, processes changing inputs, and produces a calculated output.
How Does an Analog Computer Work?
An analog computer assigns physical values to variables and connects computing components according to an equation. Its operation usually involves representation, calculation, and output.
Representing The Variables
Each variable in the problem corresponds to a physical quantity. In an electronic analog computer, a voltage might represent speed, distance, temperature, pressure, or time.
Engineers select a scale that links the value to an operating voltage. This scaling prevents the circuit from exceeding its limits while preserving the mathematical relationship.
As the original variable changes, the corresponding voltage rises or falls continuously to reflect that change during the calculation.
Performing Mathematical Operations
Connected components carry out the mathematical operations required by the model. Operational amplifiers can add, subtract, integrate, or multiply values when paired with resistors, capacitors, and potentiometers.
Patch cables determine how these components exchange signals, so the circuit mirrors the original equation. Because the parts work together continuously, several operations can occur at the same time.
The Computer History Museum explains how op-amp circuits use voltage directly for arithmetic and integration.
Producing The Result
Once the model is activated, its physical quantities change continuously and influence one another through the connected components.
The output may appear as a moving pointer, a plotted line, an oscilloscope trace, an electrical signal, or mechanical motion. When an operator adjusts an input, the result changes almost at once.
This immediate response allowed engineers to test conditions efficiently and made analog computers useful for studying motion, feedback, control systems, and dynamic processes.
A Brief History of Analog Computing
Early analog calculation used physical position, movement, and geometry. Slide rules allowed scientists and engineers to calculate through distances marked on logarithmic scales.
In 1931, Vannevar Bush completed an influential differential analyzer at the Massachusetts Institute of Technology. The Computer History Museum records its use in power transmission, physics, seismology, and ballistics.

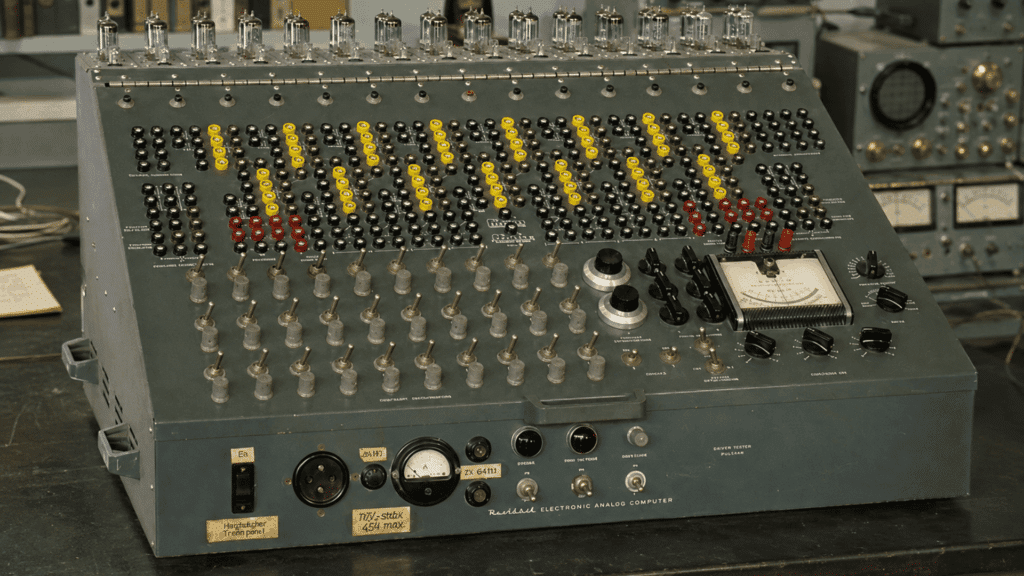

Electronic analog computers grew during and after the Second World War. By the 1950s and 1960s, they supported aircraft development, missile research, chemical engineering, and scientific simulation. Digital computers eventually replaced most general-purpose analog machines.
Common Uses and Examples of Analog Computers
Analog computers were used to model and monitor continuously changing conditions. Their ability to process connected variables simultaneously made them valuable across several fields.
1. Flight Simulation: Modeled aircraft movement, stability, and control responses.
2. Weather Research: Studied atmospheric changes and forecasting models.
3. Industrial Control: Monitored temperature, pressure, speed, and fluid flow.
4. Military Systems: Supported navigation, missile testing, and target calculations.
5. Scientific Research: Solved equations in physics, chemistry, and electrical engineering.
6. Education: Demonstrated integration, feedback, and control-system behavior.
Main Types of Analog Computers
Analog computers can be grouped according to the physical medium used to represent and process information. Each type applies the same basic principle but uses different components and signals.
- Mechanical Analog Computers: Use gears, levers, wheels, discs, or rotating shafts to model mathematical relationships through physical movement.
- Electronic Analog Computers: Use changing voltage and current, with circuit components performing operations such as addition, multiplication, and integration.
- Hydraulic and Pneumatic Analog Computers: Represent variables through liquid flow, fluid pressure, or compressed air moving within a controlled system.
- Hybrid Analog-Digital Computers: Combine continuous analog processing with digital control, storage, and measurement to improve flexibility and precision in specialized applications.
Analog Computer vs Digital Computer
The main difference is how each machine represents information. Analog computers work with continuous physical values. Digital computers work with discrete numbers, usually encoded as binary digits.
| Feature | Analog computer | Digital computer |
|---|---|---|
| Data representation | Continuous physical quantities | Discrete binary values |
| Calculation method | Physical components model equations | Software instructions process data |
| Precision | Affected by noise, drift, and component limits | Supports high and repeatable precision |
| Configuration | Often requires rewiring or adjustment | Usually requires a software change |
| Storage | Limited without external equipment | Large amounts of data can be stored |
| Typical purpose | Simulation and specialized control | General computing and data processing |
Does Analog Computing Still Matter?
Large general-purpose analog computers are now uncommon. However, analog computing principles remain relevant in specialized hardware.
Modern researchers are studying circuits that process information through current, voltage, light, memory resistance and other physical properties.
Possible applications include sensor processing, machine-learning accelerators, control systems and scientific modeling. These technologies are not direct replacements for laptops or digital servers.
They are designed to perform selected operations where low energy use, fast response or direct signal processing may offer an advantage. Many current designs combine analog calculation with digital control.
Conclusion
An analog computer represents information using continuous physical values, and its components perform mathematical operations.
Its main forms include mechanical, electronic, hydraulic, and hybrid systems. Historically, these machines supported engineering, scientific research, control systems, and simulation before digital computers became dominant.
The original question has a clear answer. Analog computing uses physical behavior as part of the calculation process. Understanding this principle makes it easier to distinguish analog computers from analog signals and ordinary analog devices.
Would you use an analog computer in the modern world? Share your opinion.
Frequently Asked Questions
Are Analog Computers Still Manufactured?
Yes. A small number of companies and research laboratories produce educational, experimental, and specialized analog systems, although mass-market availability remains limited.
Can Analog Computers Solve Nonlinear Equations?
Yes. Analog circuits can represent certain nonlinear relationships using multipliers, function generators, diodes, or specialized components designed to achieve the required mathematical behavior.
How are Analog Computer Results Calibrated?
Calibration compares known reference inputs with observed outputs. Operators then adjust scale factors, offsets, component settings, or measuring equipment to reduce error.
